Migrating Windows Code

Note: These steps tell you how to migrate Windows 32-bit code only.

Before migrating source code, ensure the correct tables are loaded:

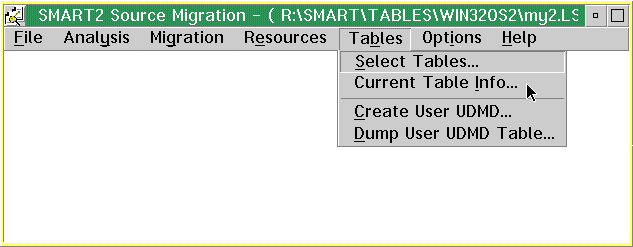

• Select the Tables pull-down from SMART2 Source Migration window. Select the Current Table Info... pull-down.

• SMART displays the Current Table Information informational dialog.

  The SMART Filename in the SMART Table Filename group box should be WIN32OS2.TBL. The User UDMD Directory in the User UDMD Migration Data Base Directory group box should be SMART\SMARTAUX\DAPIE32.

  a.

  If both are correct, click on the Ok push button and continue.
  b.
  If you need to change these fields, follow step Creating the Open32 UDMD.
  3 .
  OntheSMART2SourceMigrationwindow ,gototheMigrationpull - down .SelectMigrateSourceCode .
  4 .

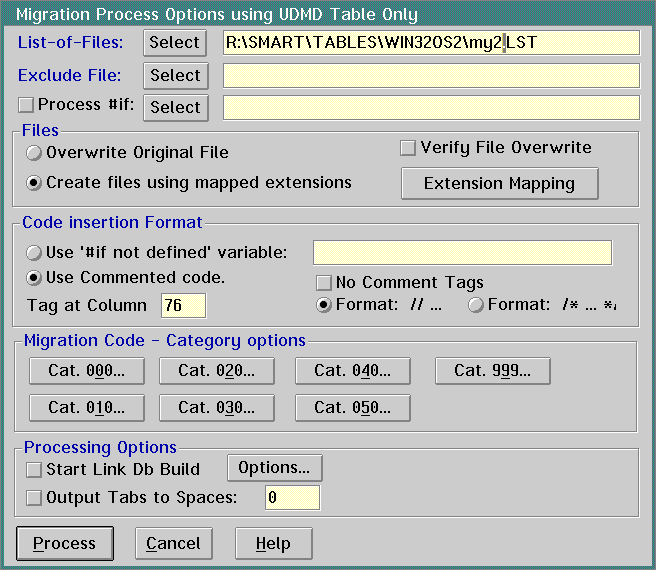

  SMARTdisplaystheMigrationProcessOptionsusingUDMDTableOnlydialog .SMARTautomaticallyentersthenameoftheLSTfileyouinitiallycreatedintheList - of - Filesentryfield .Youcanusethisfilenameortypeinanotherfilename .ClickontheProcesspushbutton .
  5.
  SMART displays the SMART2 Source Migration window.

  a.

  Go to the File pull-down.
  b.
  Select Open/View File(s).
  6.

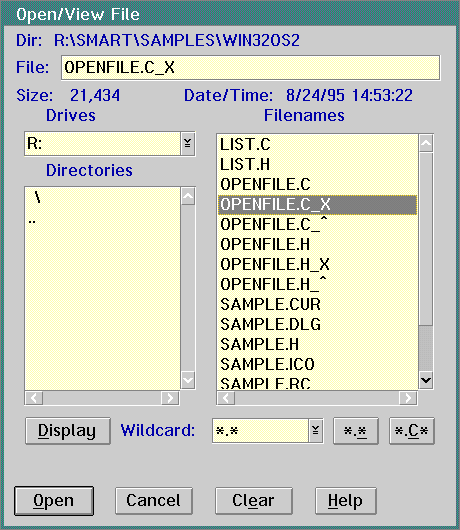

  SMART displays the Open/View File dialog. If you chose the overwrite original option from the Migrate Source Code option, SMART places the converted C code in the file with the C extension and places the converted header file in the file with the H extension. Otherwise, the file with the extension C_X is the converted C code and the file with the extension H_X is the converted header file.

  Select the converted files.

  Click on the Open push button to view the code.

  7 .
  SMARTdisplaysthecodeintheSLink-TheSmartEditorwindow .ThecommentsinthecodeindicatewhatSMART2didtoconvertyourcode .UsetheHelppull - downonthiswindowtogetinformationaboutthemigratedcode .

  ---
