Creating the Open32 UDMD

To analyze and migrate Windows 32-bit code, you need to create the Open32 UDMD as follows:

Double-click on the SMART2 Toolset object to start SMART.

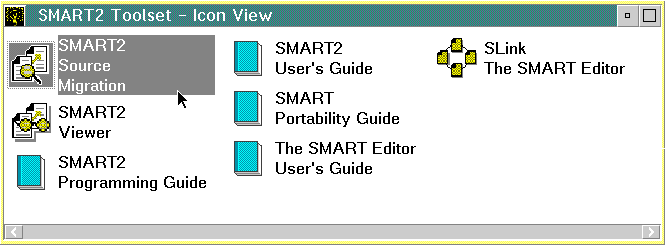

SMART displays the SMART2 Toolset - Icon View window. Double-click on the SMART2 Source Migration object.

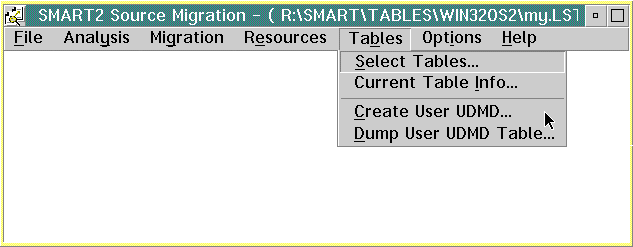

SMART displays the SMART2 Source Migration window. Select the Tables pull-down. Select Create User UDMD from the pull-down.

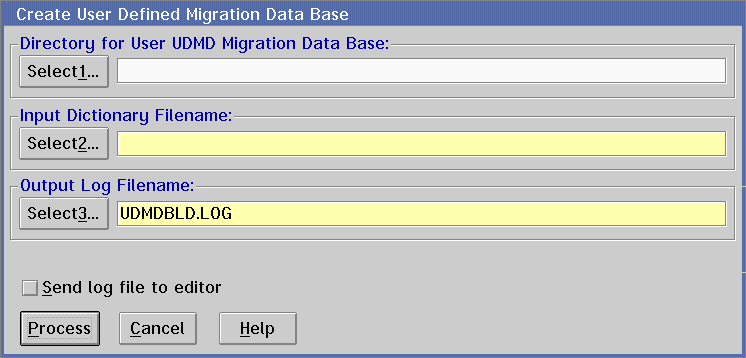

SMART displays the Create User Defined Migration Data Base dialog. Click on the Select1 push button to choose the directory name in which to store the Open32 UDMD.

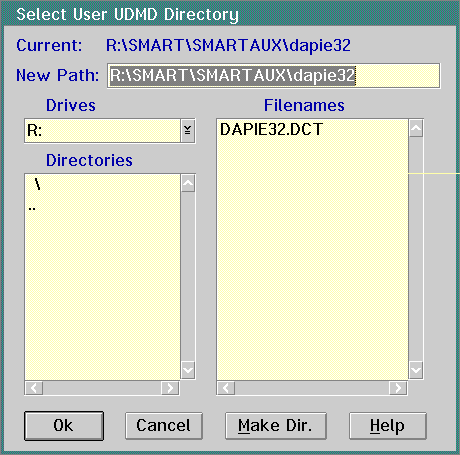

SMART displays the Select User UDMD Directory dialog. In the New Path: entry field, type the subdirectory:
```
SMART\SMARTAUX\DAPIE32
```
Click on the Ok push button.
SMART returns to the Create User Defined Migration Data Base dialog. Click on the Select2 push button.

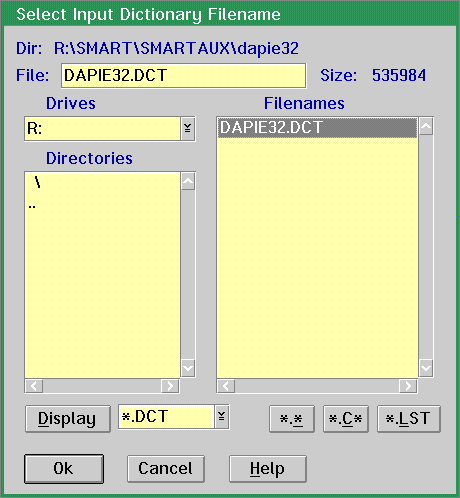

SMART displays the Select Input Dictionary Filename dialog. In the File: entry field, type the dictionary filename:
```
DAPIE32.DCT
```
Click on the Ok push button.

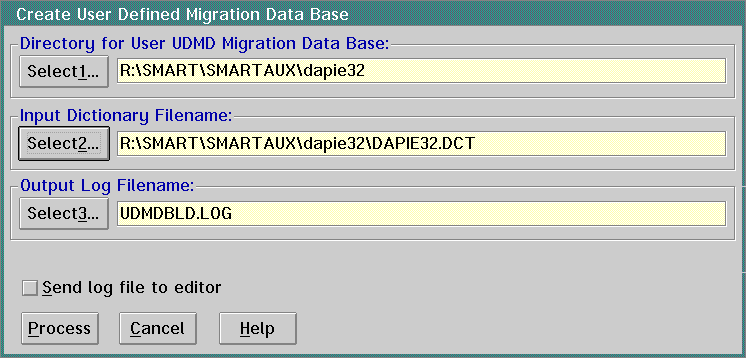

SMART displays the Create User Defined Migration Data Base dialog. Click on the Process push button.

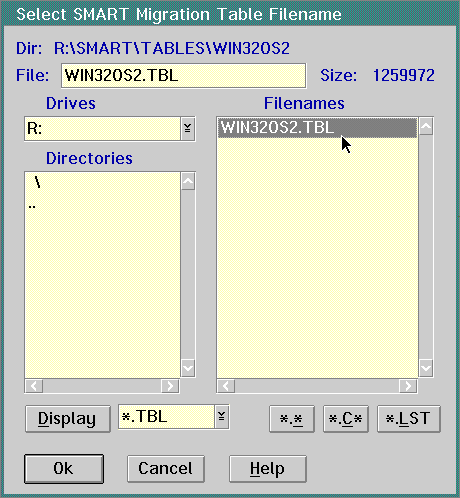

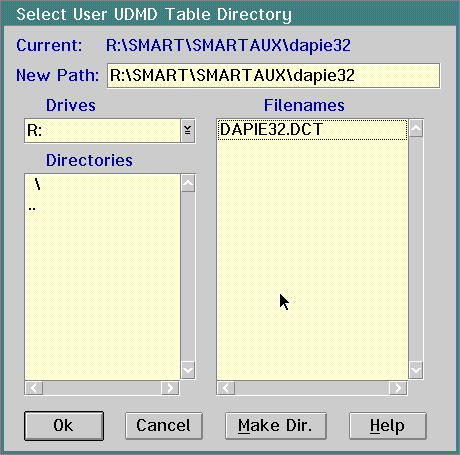

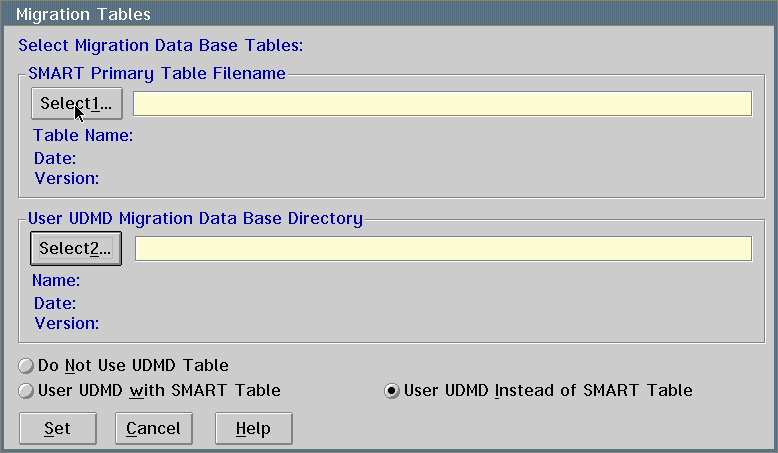

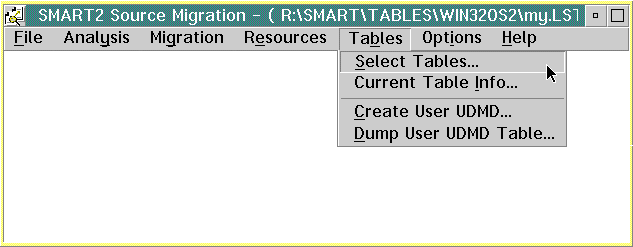

On the SMART2 Source Migration window. To load the correct table and Open32 UDMD, select the Tables pull-down. Select the Select Tables pull-down.
10.
11 .
