Analyzing Windows Resource Files

• On the SMART2 Source Migration window, go to the Analysis pull-down. Select Analyze Resource Code.

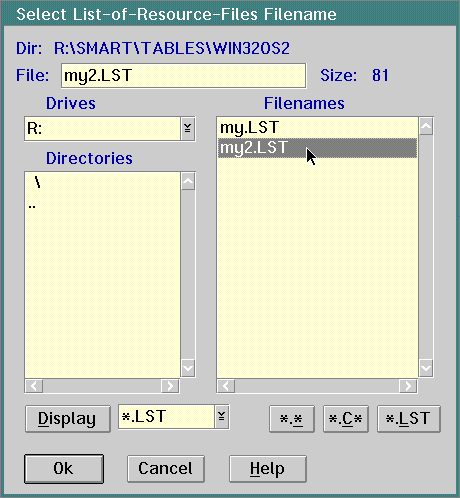

• SMART displays the Select File for a List-of-Resource-Files dialog. In this dialog, SMART2 automatically chooses the list of files you created previously. (See Telling SMART Where the Source Files Are.)

  a.

  Select the list (LST) of files that contains the RC files to analyze.
  b.
  Click on the Ok push button.
  3 .

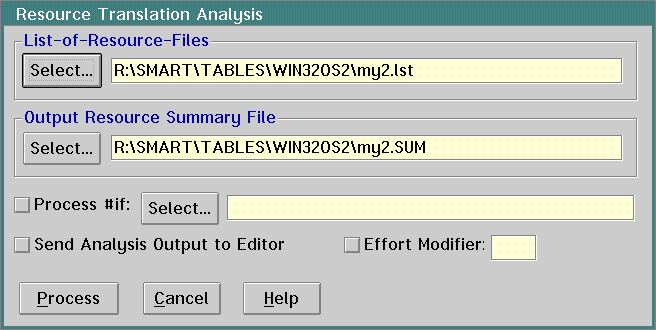

  SMARTdisplaystheResourceTranslationAnalysisdialog .ClickontheProcesspushbutton .
  4.
  SMART displays a progress informational dialog to show the progress of the analysis.
  5.
  SMART returns you to the SMART2 Source Migration window. To see the resource analysis report:

  a.

  Go to the File pull-down.
  b.
  Choose Open/View File(s)
  c.
  The file with the extension SUM is the resource analysis report. Select SUM report.
  d.
  Click on the Open push button to view the report.
  e.
  SMART displays the report in the SLink - The Smart Editor window. Use the Help pull-down on this window to get information about this report.

  ---
