Debugger properties...

Displays the Debugger Properties window, which allows you to select how the threads and source files initially display. This window contains the following three tabs:

• Source

• Remote

• Modules.

The Remote page displays by default if you open the window using the Initialization window. If not, the Source page displays.

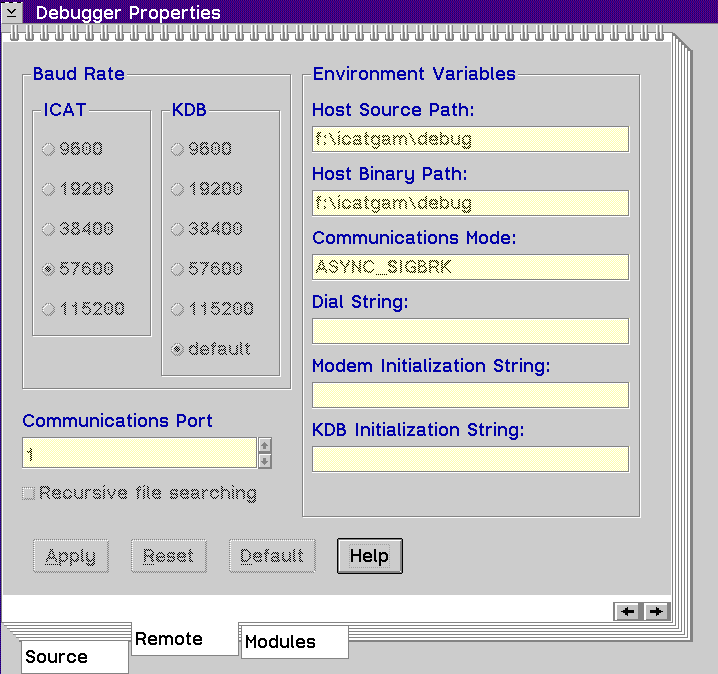

When you select the Remote tab, the following page displays:

Use this window to do the following tasks:

• Set the communication baud rate for the debugger.
  Set the communication port.

  Set the communication baud rate for KDB on initialization and after exiting.

  Set the path where the debugger finds source.

  Set the path where the debugger finds the debug binary modules.

  View the communication mode (ASYNC_SIGBRK is all that is currently available).

  Set modem communication information, if used.

  Set a string to initialize KDB.

  Set the option for recursive subdirectory searching of the source and binary paths.
  This window's values are dithered and cannot be changed after communication has been established with the victim machine.

  ICAT Baud Rate Group Heading

  This group of radio buttons allows you to select communication baud rates from 9600 to 115200. Ensure that your machine can handle rates greater than 19200 if you choose them. You must have buffered UARTs on both machines in this case. If you choose a rate of 115200, your host machine must have a COM.SYS different than the default supplied with OS/2.

  KDB Baud Rate Group Heading

  This group of radio buttons allows you to select the initial (setup) communication rate that the debugger uses to communicate with KDB. If any rate other than default is selected, that same rate will be used to reset the victim machine's communication port when the debugger is exited.

  Communications Port Spin Button

  This spin button allows you to select the communication port number for the debugger on the host machine.

  Environment Variables Group Heading

  These entry fields correspond respectively to the following environment variables:

  • CAT_HOST_SOURCE_PATH
    CAT_HOST_BIN_PATH

    CAT_COMMUNICATION_TYPE

    CAT_DIAL

    CAT_MODEM_INIT

    CAT_KDB_INIT

    By adjusting these fields, you can alter your communication and serial paths dynamically before communication is established with the victim machine. See Setting Environment Variables for detailed information on environment variables.

    Path Recursion Check Box

    This check box, when selected, forces the debugger to search all source and binary path subdirectories recursively.

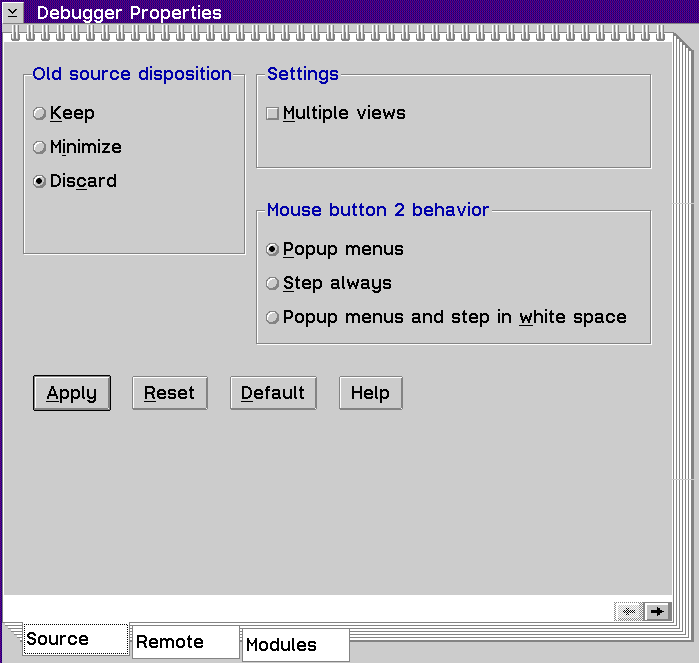

    When you select the Source tab, the following page displays:



    Use this window to determine:

    • when a source window first displays during a debugging session.
      how to process a source window from which execution has just left. The window can remain displayed, be turned into an icon, or be discarded.

      Old source disposition Group Heading

      In the course of debugging, these selections allow you to control the behavior of source windows from which execution has just left. The Old Source Disposition radio buttons control the behavior of source windows within a thread.

      The dispositions that the views can take are:

      Keep

      Leaves open the source windows that contain the components and threads that you select with Display at stop.
      Minimize
      Changes into icons the views that contain the components and threads that you select with Display at stop.
      Discard
      Disposes of the views that contain the components and threads that you select with Display at stop.

      Settings Group Heading

      You can choose to display more than one source window for a particular source file. Enable the Multiple views check box if you want to have multiple source windows open at the same time.

      Mouse button 2 behavior Group Heading

      Select the radio button that represents the action that you want mouse button 2 to perform.

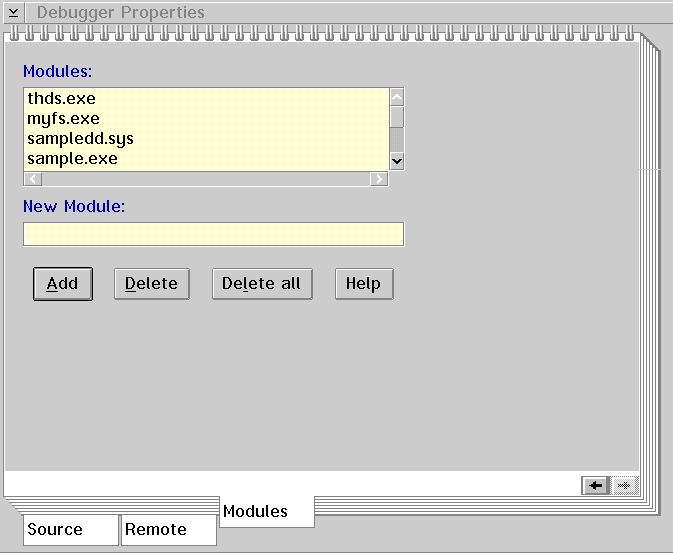

      When you select the Modules tab, the following page displays:



      Use this window to add a module name to or delete a module name from the CAT_MODULE_LIST environment variable. See Setting Environment Variables for detailed information on this environment variable.

      Modules List Box

      This contains a list of modules which the debugger obtains information about if or when they are loaded. If a module is loaded and it is not in the list, the debugger ignores the module.

      New Module Entry Field

      Type the name of the module that you want to add or delete. Select the appropriate push button to perform this task.

      ---
