Using Paths with Fill Patterns

Using paths lets you fill a character string with a complicated or nonrepeating pattern. The following sequence is recommended:

• Select the required outline font, and set the required character attributes.

• Create a path by calling GpiBeginPath, GpiCharString, and GpiEndPath.

• Set the required pattern symbol and other AREABUNDLE pattern attributes.

• Fill the path using GpiFillPath.

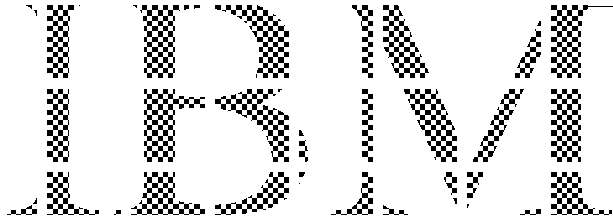

The following figure provides an example of using paths with fill patterns to create characters.

Using Clip Paths to Create Characters
